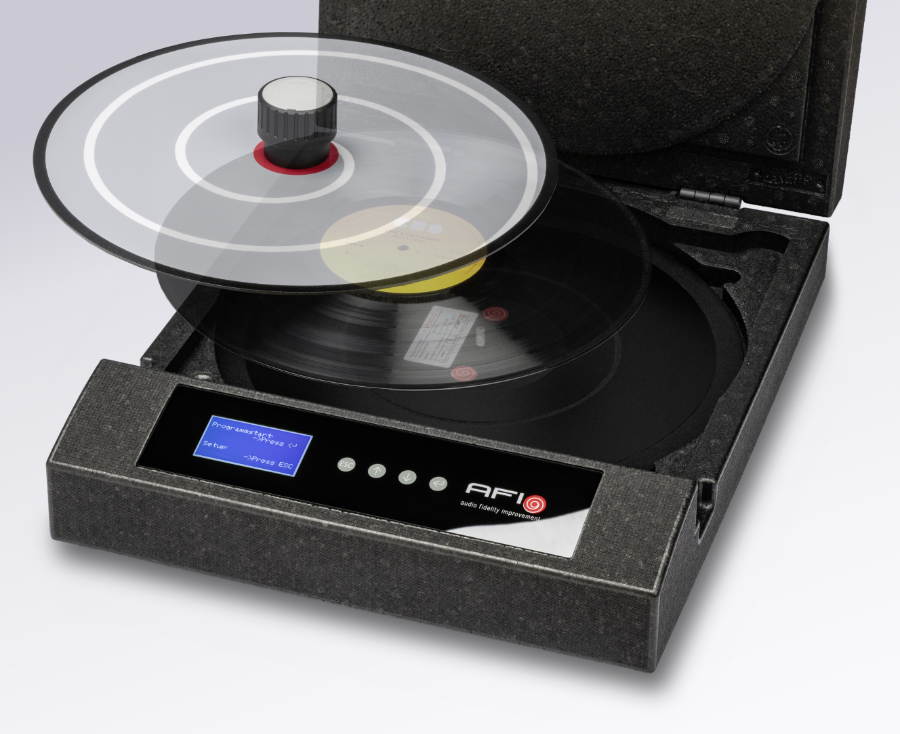

AFI FLAT.SOLO
Record Flattener
Precision for a
Single Record
AFI (Audio Fidelity Improvement) and HiFi Studio Wittmann present
the FLAT.SOLO – a deliberately streamlined and highly precise
solution for users who want to flatten records gently and
reproducibly. The FLAT.SOLO focuses consistently on the essentials:
maximum process stability, simple operation, and controlled heat
management for the precise flattening of individual vinyl records.
EPP Housing for Stable Temperature Control
The highly insulating housing made from expanded polypropylene (EPP)
forms the basis for the exceptionally stable thermal behavior of the
FLAT.SOLO. This recyclable material consists of approximately 92%
air and provides significantly better insulation than conventional
metal enclosures. As a result, heat remains precisely within the
system, temperature loss is minimized, and the entire record surface
is heated evenly. At the same time, power consumption is reduced to
only 25 watts. During stationary operation, temperature deviation
remains at just ±0.15 °C – a decisive factor for reproducible
results and maximum protection of the record.
Consistently Focused on Precise Flattening
The FLAT.SOLO was deliberately designed as a “flattening only”
device. It omits additional functions such as piggyback processing
or relax programs and focuses entirely on the precise flattening of
individual records. Two fixed programs at 55 °C and 57 °C reliably
cover the most common types of warping. This keeps operation
particularly simple and intuitive while ensuring a high level of
process reliability.
Homogeneous Heat Distribution for Reproducible Results
The specially developed heating-pressure module distributes heat
evenly and precisely across the entire record surface. The defined
contact pressure via the torque knurled knob additionally ensures
that the record lies perfectly flat so that heat can act uniformly
across the material. In combination with the intelligent and highly
precise control electronics, the temperature remains constant across
the complete record surface. Local overheating, hotspots, and cold
zones are reliably avoided – especially in the sensitive outer edge
areas of the record. This homogeneous temperature management forms
the foundation for material-safe processing and permanently
reproducible results.
Made in Germany – Durable Quality and Precision
Like all AFI devices, the FLAT.SOLO is handcrafted in Germany.
High-quality materials, precise workmanship, and clearly defined
production standards ensure consistently reliable performance even
with regular use. Its robust and low-maintenance construction makes
the FLAT.SOLO a sustainable long-term solution for demanding vinyl
enthusiasts and collectors.
Technical Specifications
Housing: Highly insulating, recyclable EPP body
Capacity: Flattening of one record (7", 10", 12")
Programs: Two fixed flattening programs (55 °C / 57 °C)
Heating-Pressure Module: Homogeneous heat distribution across the
entire record
Temperature Control: Profile-guided AFI regulation with ±0.15 °C
deviation during stationary operation
Pressure Mechanism: Defined contact pressure for perfectly flat
record positioning
Cooling: Controlled and even cooling without fan operation
Power Consumption: 25 W
Patents: Energy-efficient construction • homogeneous heat
distribution • process-stable temperature control
Dimensions (W × D × H): 36 × 45.5 × 11 cm
Weight: 2.8 kg |
